ACCU-SCOPE's new EXC-500 Series offers best-in-class performance and value for clinical laboratory and research applications. The newly designed NIS optical system provides sharp, crisp images via Plan achromat or S-Plan APO objectives. The EXC-500 Series' modular design is compatible with many accessories for research, fluorescence, phase contrast and darkfield applications.



Specifications:

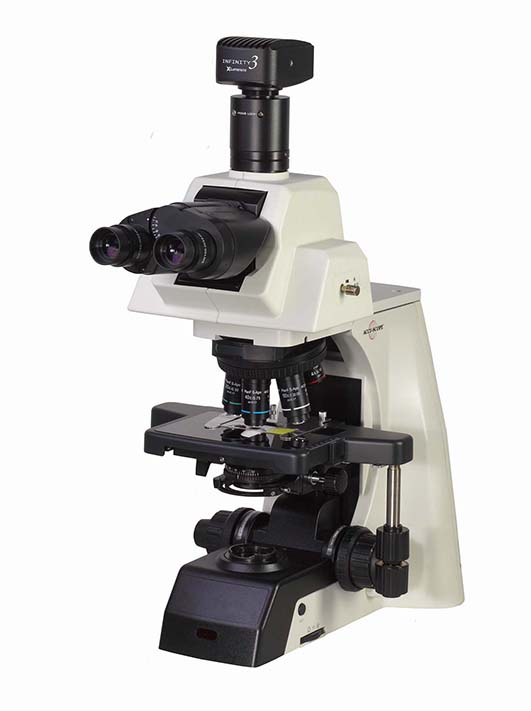

Accu-scope EXC-500 Microscope Series
Optical System
NIS Infinity optical system.
Viewing Head
Widefield or ergonomic binocular or trinocular viewing head. Ergo tilting heads are adjustable from 0° to 35°. Trinocular viewing heads have a 3-position beam splitter (0:100, 100:0, 80:20).
Eyepieces
WF 10x/22mm focusable eyepieces with eyeguards. Eyepiece accepts a 26.5mm reticle. Optional 15x and 20x eyepieces are also available.
Nosepiece
Reversed sextuple, ball bearing nosepiece with positive click stops to ensure parcentration.
Objectives
Clinical Labs: NIS Plan achromat 2x, 4x, 10x, 20xR, 40xR, 50xR, 60xR and 100xR oil. Research/Pathology: NIS S-Plan APO 4x, 10x, 40xR and 100xR oil.
Stage
Mechanical stage with GorillaTM Glass insert and tension adjustable controls. Size 302mm x 152mm with X-Y movement range of 78mm X 54mm.  Optional pathology stage is available.
Condenser
Achromat swing-out condenser 0.9 dry/1.25 oil on a rack and pinion with iris diaphragm.
Stand
Cast alloy aluminum.
Illumination
3 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use. Universal power supply 110v-240v.
Focusing System
Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear.
Accessories
Dust cover, immersion oil and instruction manual.

Optional Accessories

  • Multi-viewing configurations (2, 3, 5 and 10 viewing positions)
  • Fluorescence attachments
  • Plan achromat objectives: 2x, 4x, 10x, 20xR, 40xR, 50xR oil, 60xR and 100xR oil
  • S-Plan APO objectives: 4x, 10x, 20xR, 40xR and 100xR oil
  • Plan phase objectives: 10x, 20xR, 40xR and 100xR oil
  • Turret phase contrast condenser, darkfield dry condenser (N.A. 0.7-0.9), darkfield oil condenser (N.A. 1.25-1.36)
  • Simple polarizer/analyzer
  • Reticles
  • Gout kit
  • Microscope carry case

Miscellaneous

  • Microscope Dimensions (LWH): 300mm x 425mm x 450mm
  • Physical weight: 30lbs.

Warranty

  • 5 year limited warranty for parts, labor and electronic components.
  • 1 year warranty on LED bulb.
