Description:

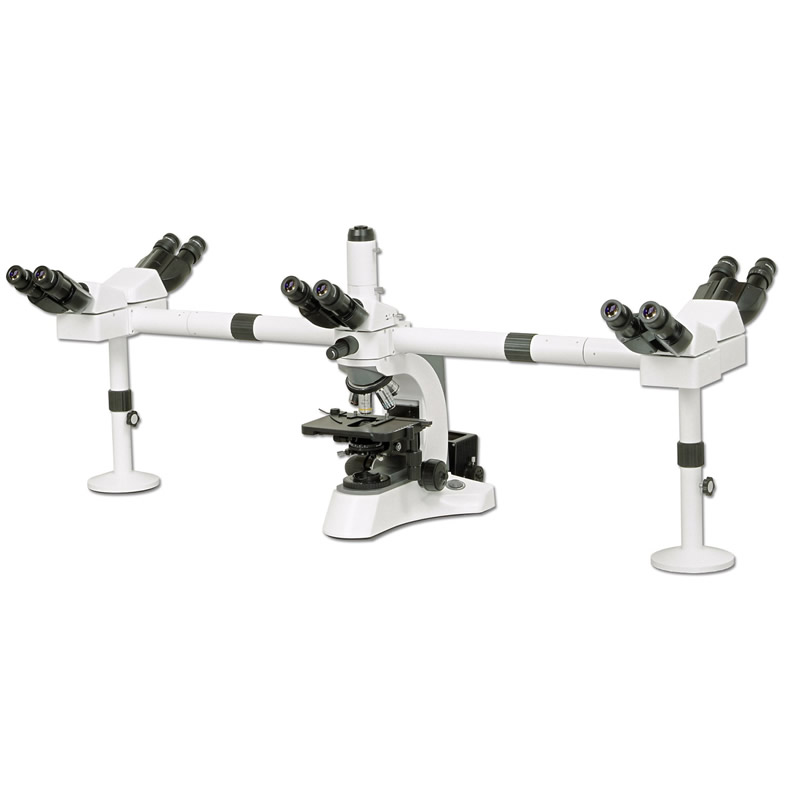

Multi-viewing microscope allows multiple observation at the same time
Infinite Optical System, Effective Illumination, LED Pointer and images coherence
Widely used in Clinic, Scientific Research and Teaching Demonstration.

Specification:

Optical System	lnfinite Optical System Viewing Head
Head	Compensation Free trinocular Head,lnclined at 30degree,360degree Ratatable,lnterpupilary Distance 48-75mm	1pc
	Compensation Free binocular Head, lnclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm	4pc
Eyepiece	Extra Wide Field Eyepiece WF10X/20	10pcs
lnfinite Plan Achromatic Objective	4X
	10X
	40X(S)
	100X(S,Oil)
Nosepiece	Inverse Quintuple Nosepiece Objective
Stage	Double Layers Mechanical Stage 185x142mm, Moving Range 75x55mm
Condenser	Condenser swing condenser N.A.0.9/0.25
Focusing	Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm
Kohler lllumination	External lllumination, Halongen Lamp 12v50w
Pointer	Green LED Pointer, Brightness Adjustable

Optional Accessory:

Video Adapter	C Mount 1x
	C Mount 0.5x
