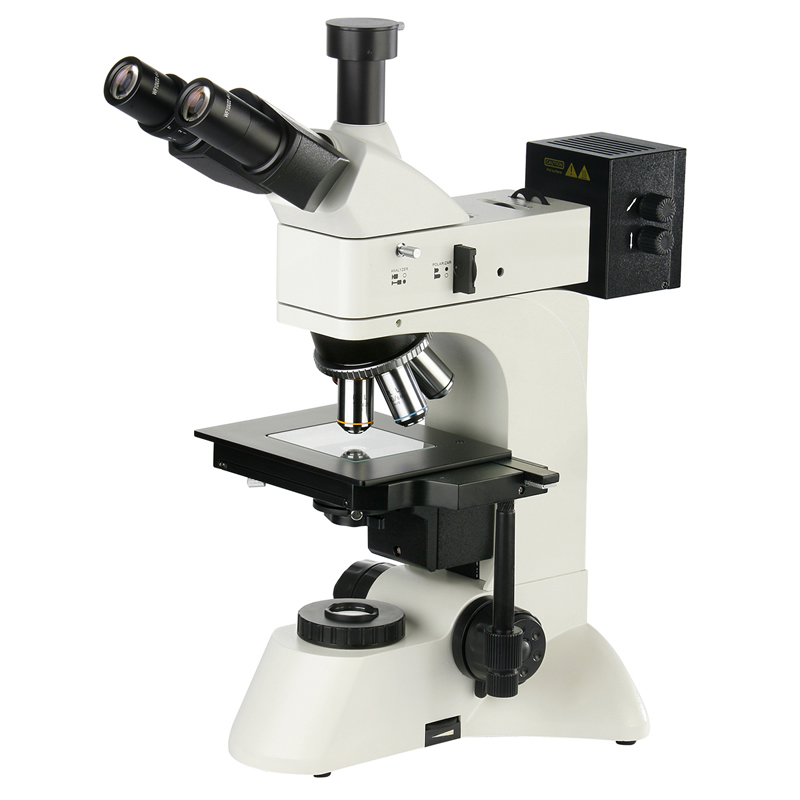

UM.02.3230 Trino Transmitted & Reflected Metallurgical
Description:
- With infinity plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, it can get clear pictures and wide view field.
- Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
- Movement of stage: 30mm
- With vertical illuminator and transmitted illuminator, can observe surfaces of non-transparent object or transparent object
- Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port
Specification:
UM.02.3230 TrinocularTransmitted and Reflected Metallurgical Microscope | ||
Head | Trinocular, Inclination of 30 degree (Analyzer with field diaphragm to switch) | |
Eyepiece | Wide field WF10X(Φ22mm) Dia:30mm for inserting eyepiece tube | |
LWD Infinity Plan Achromatic Objectives | PL L5X/0.12 WD= 26.1mm (no cover glass) | |
PL L10X/0.25 WD=20.2mm (no cover glass) | ||
PL L40X/0.60 (spring) WD= 3.98mm (no cover glass) | ||
PL L60X/0.75 (spring) WD=3.18mm (no cover glass) | ||
Nosepiece | Quintuple (Backward ball bearing inner locating) | |
Stage | Double layer mechanical with Glss insert (Size:210mmX140mm,movingrange:75mmX50mm) | |
Reflected Illumination | 6V 30w, halogen lamp, brightness control. | |
With field diaphragm, aperture diaphragm, polarizer, Y,B,G filter, frosted filter | ||
Transmitted Illumination | Abbe condenser NA.1.25 Rack & pinion adjustable | |
Blue filter and frosted filter | ||
Collector for illumination with halogen lamp (With field diaphragm ) | ||
Kohler Illumination 6V 20w halogen lamp, brightness control. | ||
Focus System | Coaxial coarse/fine focus system, with tensional adjustable and limit stopper, minimum division of fine focusing: 0.002mm. |
Optional Accessory:
Eyepiece | Dividing eyepiece 10X(Φ22mm) 0.10mm/Div |
LWD Infinity Plan Achromatic Objectives | PL L 20X/0.40 WD=8.80mm (no cover glass) |
PL L 50X/0.70 WD=3.68mm (no cover glass) | |
PL L 80X/0.80 WD=1.25mm (no cover glass) | |
P L L 100X/0.85 WD=0.4mm (no cover glass) | |
Filter | Green filter |
Yellow filter | |
CCD Adapter | 0.4X |
0.5X | |
1X | |
0.5X with dividing 0.1mm/Div | |
Metal Specimen |
50 Types Metal Specimen for Option ( MOQ 25pcs for one set) |
Digital Camera Adapte | CANON EOS Digital Adapter |
